NRF24 no spectrum

[Javo]

I don’t see any frequencies in Spectrum when I do the test. I’ve connected all the cables according to the diagram and the device recognizes the NRF24, however it doesn’t work. Can you help me?

[Peve]

Hi!

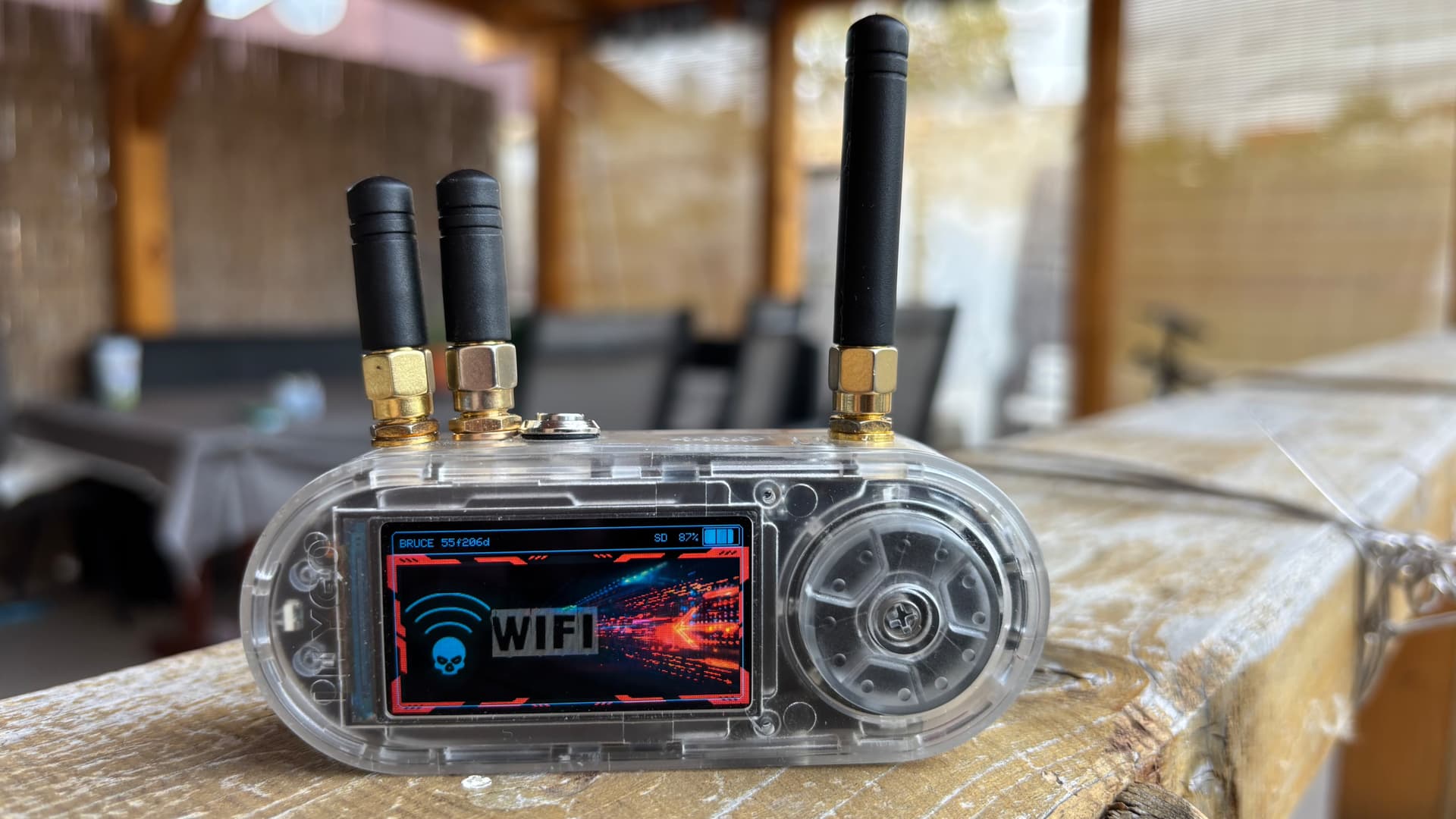

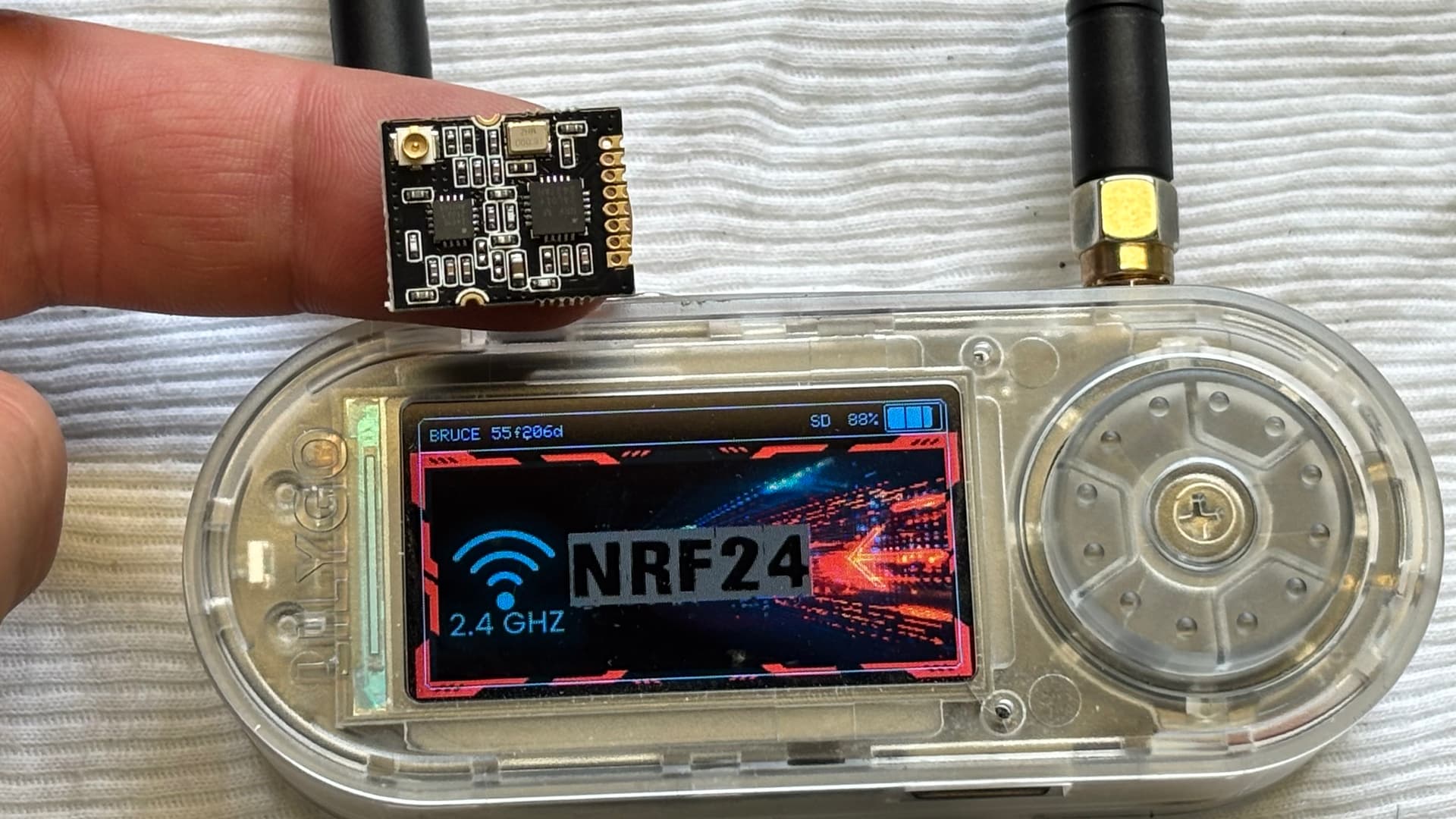

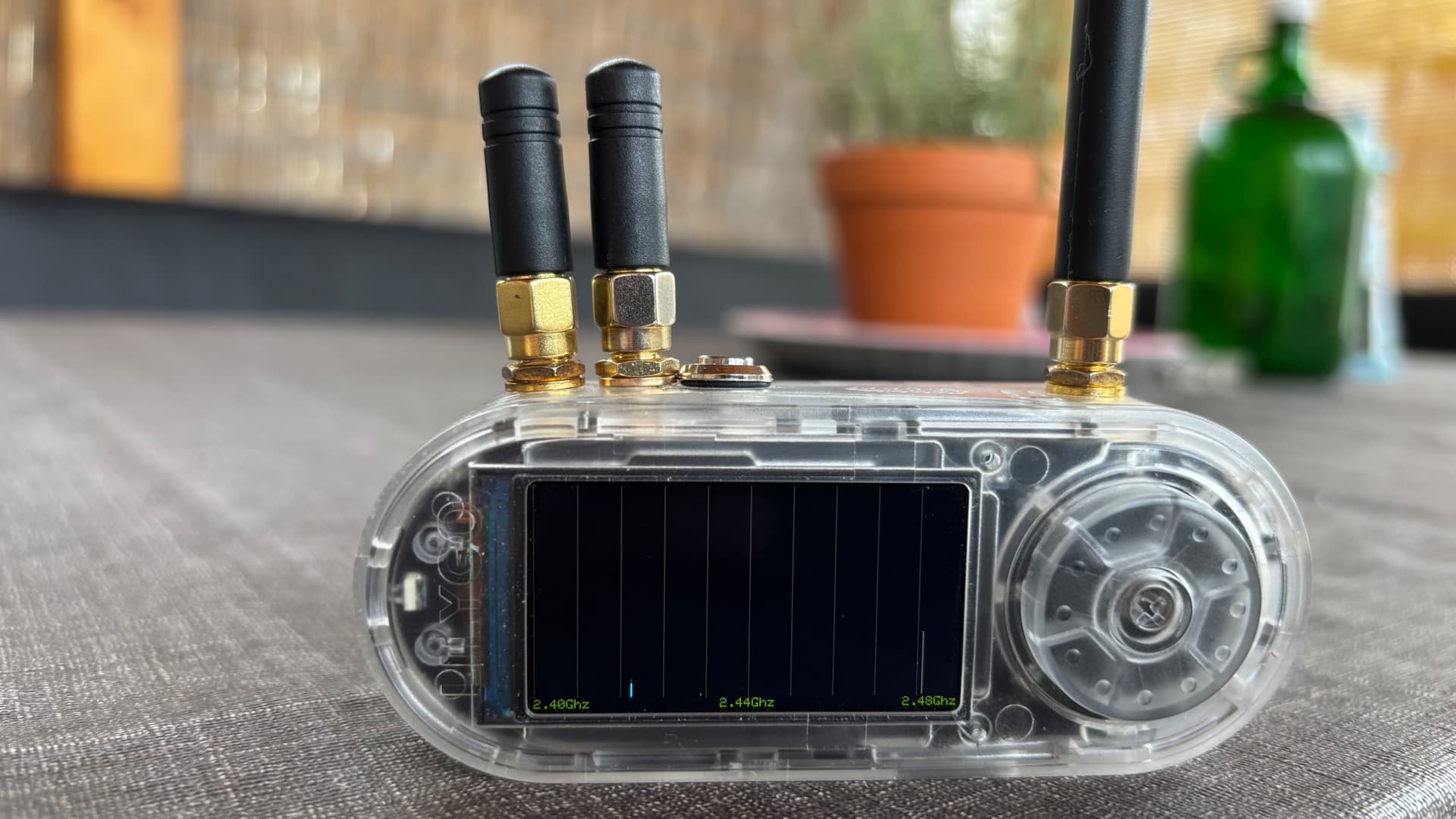

I use the GT-24 mini nrf24 modul in my tembed cc1101 with own antena
It works perfect

[gibot]

would you have the installation diagram?

[Peve]

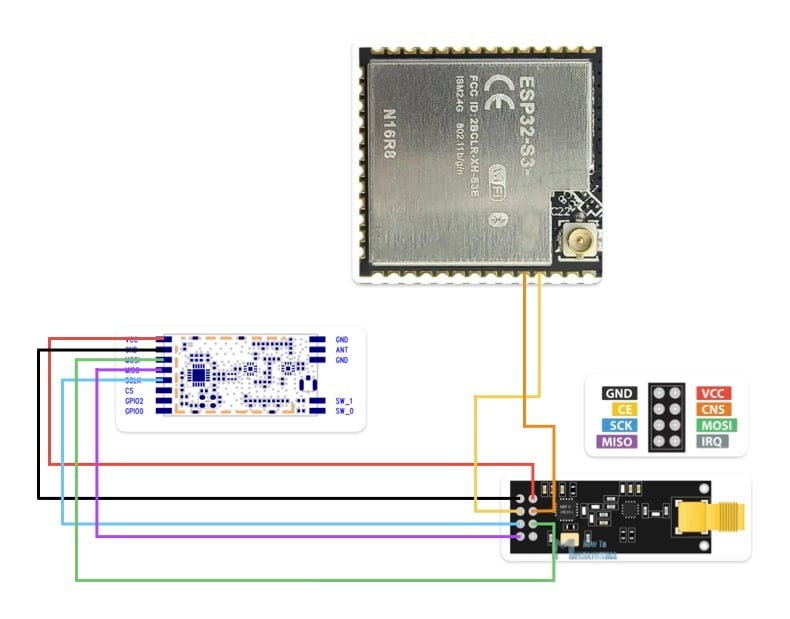

Yes. Here it is
